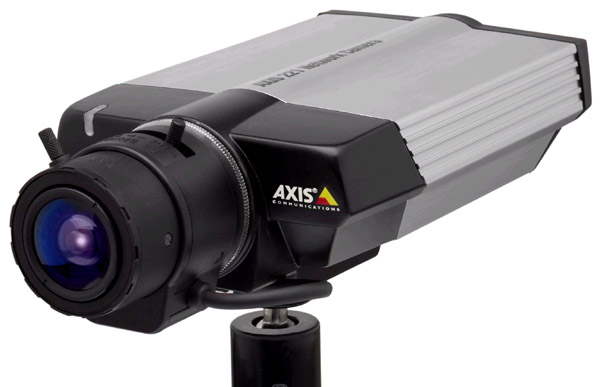

AXIS 221 Network IP Camera
The Axis 221 Day & Night Network Camera is a high performance camera for round-the-clock surveillance over IP networks. With the ability to provide high quality images under all lighting conditions, the Axis 221 is an ideal solution for indoor and outdoor applications, including the surveillance of buildings, roads, parking areas, garages, railway stations and airports.

The Axis 221 features an automatic, removable infrared-cut filter, which enables the camera to provide colour video when there is sufficient light, and black and white video in dark conditions. [see Day and Night Functionality]. It uses a high performance Pentax lens and a progressive scan CCD image sensor that enables moving objects to be presented without distortion. In addition to support for 45 frames per second at all resolutions, the Axis 221 offers simultaneous Motion JPEG and advanced MPEG-4 video streams to optimise image quality and bandwidth efficiency.

Integrated features include video motion detection, pre- and post-alarm buffer, and inputs/outputs for connecting external devices such as door sensors and relays to activate light or close doors.
Additionally, the product offers a complete set of security features such as multi-level password protection, IP address filtering and HTTPS encryption. The support for HTTPS provides a secure channel between camera and application and enables authentication of the video source.

The Axis 221 fully supports the Power Over Ethernet IEEE 802.3af standard and works with compliant mid-spans and switches. Power supply to the camera can be guaranteed by use of an Uninterruptible Power Supply (UPS).

The Axis 221 Network Camera carries an Axis 3-year Warranty.
The Axis 221 is available for purchase under the Axis 30-day "Buy & Try" Scheme
AXIS 221 Network IP Camera - Features
  • Superior image quality using a progressive scan CCD sensor, which enables moving images to be presented without distortion
  • Day and Night Functionality allows the camera to automatically switch between a colour image during daylight conditions and light sensitive black & white mode during low light conditions

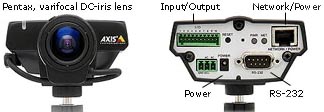

  • Lens: High quality Pentax, vari-focal DC-iris lens, F1.0
  • Power Over Ethernet (IEEE 802.3af) enabled
  • Resolutions up to 640x480 pixels
  • Eleven levels of compression
  • Up to 45 frames per second in all resolutions
    Up to 60 frames per second in 480x360 or lower
  • Minimum Illumination (colour): 0.65 Lux, F1.0
  • Built-in video motion detection with pre and post alarm buffers (9Mb)
  • High-quatity Motion-JPEG compression
  • Simultaneous Motion JPEG and MPEG-4 streams
  • Support for up to 20 simultaneous users (virtually unlimited number of users if using multicast)
  • Multi-user level password protection and IP address filtering
  • Maximum bandwidth control (prevents saturation of the network)
  • Scheduled and triggered event functionality with alarm notification via e-mail, TCP, HTTP, and upload of images via e-mail, FTP & HTTP
  • 2 alarm input and 1 alarm output
  • Privacy masking, Text, date and time overlay
  • Indoor/Outdoor use. Operating environment: 5- 40 C (41-104 F)
  • Power Supply: 7 - 20V DC, maximum 5.5 W
    Alternative supply: 10-24V AC, maximum 7.5 VA
    Power over Ethernet (IEEE 802.af) with power classification Class 2
  • Dimensions: height; 49mm (1.9"), width; 88mm, (3.5"), depth; 186mm, (7.3")
  • Weight: 550g (1.3lb) excluding power supply

AXIS 221 Network IP Camera - System Requirements
Operating System:
Windows XP, 2000, NT4.0*, ME* or 98*, DirectX 9.0 or later
Browsers:
Windows: Internet Explorer 5.x or later
For other operating systems and browsers see www.axis.com/techsup
Hardware:
Pentium III, 500MHz or higher, or AMD equivalent
128 MB RAM
*Limitations in functionality may occur

AXIS 221 Network IP Camera - System Accessories
  • Milestone Xprotect is based on four main offerings scaled in functionality and price which offer multi-hardware support and robust performance. Milestone XProtect can control up to 64 cameras per server, with multiple servers and multiple sites.
  • Axis Camera Station One is a (Free !) software solution for the simultaneous viewing and recording of high-quality H.264, MPEG-4 and Motion JPEG video from a single surveillance camera.
  • Axis Camera Station software offers Windows PC users all the necessary video recording and monitoring functions for security surveillance. The software supports up to 50 cameras/video servers per installation and an unlimited recording database (limited only by hardware!).
  • Axis Camera Management Axis Camera Management is a powerful and efficient installation and management tool for use with Axis video products.
  • The Videotec Verso Housing protects the Axis 221 against adverse conditions.
  • Infrared Illuminators for the Axis 221.

Request Information:

Email E-mail

[Find out more...] Axis 221 "Technical Data Sheet" , 361 kB pdf file.

[Find out more...] Axis 221 "User's Manual", 2.072 MB pdf file.

[Find out more...] Axis 221 "Installation Guide", 753 kB pdf file.

[Find out more...] Axis "IP Surveillance Design Guide", 13 MB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

AXIS 221 - Order Details

Axis 221
Region Part Number
EUR 0221-002 Buy Axis 212
UK 0221-003 Buy Axis 212
