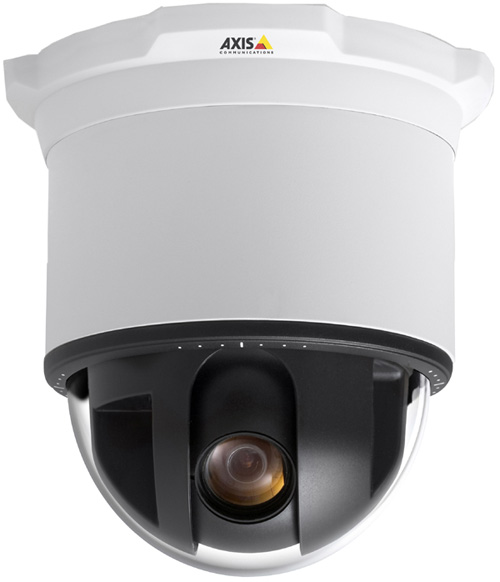

AXIS 233D PTZ Dome Network IP Camera
Axis 233D is designed for use in challenging surveillance applications - such as airports, stadiums, casinos and ports - where the ability to follow moving objects from a long distance and see great detail is crucial.

With a powerful 35x optical and 12x digital zoom, Axis 233D can zoom in on small and distant objects, allowing for example license plates to be clearly identified from a distance of 160m (525 ft). Whether zoomed out or in full 35x zoom position, images are crisp, clear, and rich in colour and detail.

With a maximum speed of 450/second, and high precision low speed movement at 0.05/second, Axis 233D can follow a walking person at a distance of 400 m (1300 ft) and pan/tilt to any preset in less than 1.5 seconds. The freeze function holds the image while moving between presets, to make it easier to work with. The E-flip functionality electronically inverts the image 180 when following an object moving under the dome.

The Axis 233D has an automatic day/night IR-cut filter. This enables the camera to capture colour video in light conditions down to 0.5 lux at 30 IRE and black and white video in dark conditions as low as 0.008 lux at 30IRE.
See Axis 233D Network Dome Camera - Overview for information on the advanced features of the Axis 233D.
The Axis 233D Network Dome Camera carries an Axis 3-year Warranty. The warranty applies to purchases made from 1st January 2007.
AXIS 233D PTZ Dome Network IP Camera
Features

  • 35 x optical and 12 x digital zoom (total 420 x)
  • Fast and precise pan/tilt mechanism. Maximum speed 450 per second. Low speed movement at 0.05 per second
  • Wide dynamic range (WDR) [128 x]
  • >Progressive scan CCD
  • Electronic image stabiliser (EIS)
  • Area zoom
  • Day/Night functionality: automatic day/night IR-cut filter. See also Infrared Illuminators
  • Superior image quality with simultaneous Motion JPEG and MPEG-4 video streams
  • Maximum resolution 704 x 576 (PAL)
  • Frame rate, up to 25 frames per second (PAL) for all resolutions
  • Duplex audio with audio detection alarm
  • Horizontal viewing angle: 1.73 to 55.8
  • Pan Range: 360 endless
  • Tilt Range: 180
  • Minimum illunimation:
    Colour; 0.5 lux at 30 IRE
    Black/white; 0.008 lux at 30 IRE
  • 11 levels of image compression
  • 100 preset positions, guard tour and control queue
  • Shutter time: 1.5 to 1/30000 second (PAL)
  • Multiple user access levels with password protection
  • IP address filtering
  • Up to 20 viewers can directly access the camera simultaneously; virtually unlimited viewers if streamed through a relaying server
  • Advanced alarm and event management: events triggered by video motion detection, PTZ position, audio detection, external inputs, temperature levels or schedule with alarm notification via e-mail, TCP, HTTP, and image uploading via e-mail, FTP & HTTP
  • >Supports Quality of Service (QoS) which helps to ensure the necessary bandwidth for streaming video and control commands over the network
  • Supports Internet Protocol version 6 (IPv6) in addition to version 4.
  • 4 alarm inputs and 4 alarm outputs, power in, auxiliary power out, audio line/microphone in, aoudio line out
  • Casing: Metal/plastic, polycarbonate dome cover
  • Dimensions: height; 170mm (6.69"), width; 170mm (6.69"), depth; 209mm, (8.23")
  • Weight: 2.5 kg (5.5 lbs) including hard ceiling mount but excluding power supply
  • Operating environment:
    Temperature; -5- 45 C (23-113 F)
    Humidity; 20 - 80% RHG. Alarm when out of operating range
  • Power: 18 - 30 VAC, max 25VA, 22 - 40 VDC, max20W
  • Accessories Included: Indoor power supply, Axis PS-R 24 VDC, drop ceiling and hard ceiling mounts, clear and smoked dome covers, installation guide, user's manual, management tool, MPEG-4 licenses 1 encoder, 1 decoder), MPEG-4 decoder (Windows)

AXIS 233D PTZ Dome Network IP Camera
System Requirements

Hardware:
CPU; Pentium III 500 MHz or higher, any AMD Athlon1.
Memory;128 MB RAM1
Meeting the specification for the selected operating system and browser
Graphic card1; AGP card with Direct Draw support and 16 MB video memory (32/64 MB recommended for high resolutions/colour depths)

Software:
Windows; [versions Win20001 and XP1]
Supported Browsers; Internet Explorer 6.x or later
1 MPEG-4 requirements

AXIS 233D PTZ Dome Network IP Camera
Accessories

  • Milestone Xprotect is based on four main offerings scaled in functionality and price which offer multi-hardware support and robust performance. Milestone XProtect can control up to 64 cameras per server, with multiple servers and multiple sites.
  • Axis Camera Station One is a (Free !) software solution for the simultaneous viewing and recording of high-quality H.264, MPEG-4 and Motion JPEG video from a single surveillance camera.
  • Axis Camera Station software offers Windows PC users all the necessary video recording and monitoring functions for security surveillance. The software supports up to 50 cameras/video servers per installation and an unlimited recording database (limited only by hardware!).
  • Axis Camera Management Axis Camera Management is a powerful and efficient installation and management tool for use with Axis video products.
  • Axis T95A, an IP66-rated Dome Housing for installation of the camera in outdoor or adverse, indoor environments. Enhanced Heating system for continued camera operation in conditions down to -30 C and up to 45 C.

Request Information:

Email E-mail

[Find out more...] Axis 233D Dome Camera "Technical Data Sheet", 822 kB pdf file.

[Find out more...] Axis 233D Dome Camera "User's Manual", 3.25 MB pdf file.

[Find out more...] Axis 233D Dome Camera "Installation Guide", 1.11 MB pdf file.

[Find out more...] Axis "IP Surveillance Design Guide", 13 MB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

AXIS 233D - Order Details

Axis 233D
Region Part Number
EUR 0265-001 Buy Axis 233D
UK 0265-002 Buy Axis 233D
