REG-D1, featuring Ambient Rejection Technology for reliable license plate capture at ranges up to 30 m and vehicle speeds of up to 100 mph
You are Here:- Home >> Products >> Illuminators >> Bosch REG >> REG-D1 >> Technical Specification
Sentry Access Control >> REG-X1 >>
REG-D1 >> REG-L1 >> REG-Z1 >>
-D1 Technical Specification
Resolution  Capture Camera 600 TVL
Resolution  Colour Overview Camera 480 TVL
Integrated Infrared Illumination High-resolution LED array, 850nm
Lifetime of IR Illuminator > 5 years
Input 12V to 24V AC/DC
Consumption Maximum 30W
Temperature -50°C (-58°F) to +50°C (122°F)
Construction Robust alluminium casting and extrusion
Environmental IP66 / NEMA 4
Colour Black (RAL B401) as standard<
Dimensions 281 x 275 x 170 mm (11.0 x 10.8 x 6.6 in)
Weight 5.8 kg (12.7 lb)
Bracket Order bracket separately. See Accessories

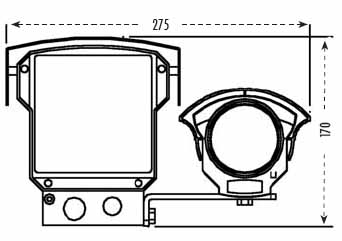

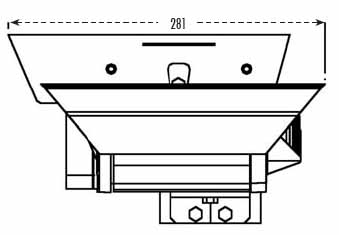

-D1 Technical Drawing
All dimensions in mm
Request Information:

Email E-mail

[Find out more...] REG-D1 "Technical Data Sheet", 886kB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.
