- Specifications

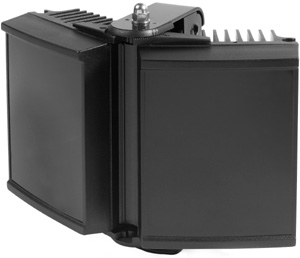

The Raymax 100 provides long life and ultra low maintenance. The Raymax 100 incorporates the very latest surface mount LED’s to deliver excellent nighttime pictures with improved optical output and outstanding reliability.
Raymax illuminators are supplied with a mounting bracket and a Standard Power supply. The Raymax 100 is suitable for all low light installations up to 150m (492ft).
- Illuminator Specifications
Wavelength
850nm or 950nm
Maximum Distance
Up to 150m (492ft)
Beam angle
10° to 180°
Optics
SMT LED's
Temperature Range
-50° C (-58° F) to 50° C (122° F)
Supply Voltage
13.5V, current controlled
Power consumption
50W maximum
Ingress protection rating
IP66
Colour
Black
Dimensions
210mm x 150mm x 65mm (8" x 6" x 3", approximately)
Weight
2.5kg (4.84lbs)
- PSU Specifications
Input
Universal 100-240V AC auto sensing
Output
50W maximum
Temperature Range
-50° C (-58° F) to 50° C (122° F)
Dimensions
160mm x 160mm x 90mm (6" x 5" x 3", approximately)
Weight
1.5kg (3.3lbs)
All Raymax Illuminators are supplied with a current controlled , with power adjustment fro 0-100%, an externally rated photocell with sensitivity adjustment and a telemetry input to allow the unit to be controlled by an external trigger.
and Low Voltage Power Supplies are available as optional accessories.
