You are Here:- Home >> Products >> Illuminators >> Raytec >> Raymax >> Raymax 200

The Raymax 200 provides long life and ultra low maintenance. The Raymax 200 incorporates the very latest surface mount LED’s to deliver excellent nighttime pictures with improved optical output and outstanding reliability.

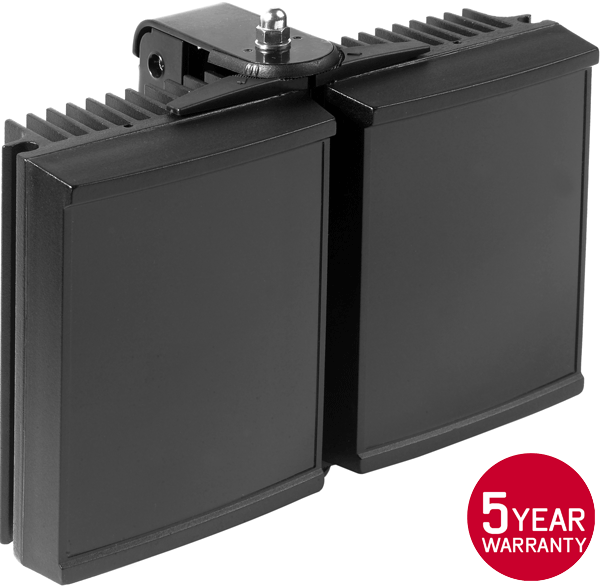

The unique Adaptive Illumination concept provides the flexibility to alter the angle of illumination on site to suit specific security needs and to match the camera’s field of view. [Click "animated gif" to see the adaptive illumination feature of the Raymax RM 200 in operation]. Raymax illuminators are designed to provide even output illumination.

Each unit is fitted with a Cool Running thermal management system to carefully control LED output and delivers a projected working life of 10 years.

Raymax illuminators are supplied with a mounting bracket and a Standard Power Supply. Control features on the power supply include adjustable power output, photocell and telemetry control. The Raymax 200 is suitable for all low light installations up to 300m (985ft). [See Achievable Distance]

- Features
PowerfulFlexible
  • Distances up to 300m (985ft)
  • Latest LED technology
  • High power, low running costs
  • Adaptive Illumination
  • Various Angles (10° to 180°)
  • Fully Controllable Power Supply
ReliableControlled
  • 10 year life
  • Cool Running thermal management system
  • Vandal Resistant
  • Zero Light Pollution
  • Even Output Illumination
  • Semi-Covert or Covert Options
- Technical Data
All Raymax LED illuminators are provided with a 5 Year Warranty

[Find out more...] Raymax 200 "Technical Specifications".

[Find out more...] Raymax 200 "Technical Data Sheet", 347 kB pdf file.

[Find out more...] Raymax "Installation Guide", 308 kB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

Request Information:

Email E-mail

- Order Details
OmegaCubed.net does not sell on-line. Orders (See Order Options for Details) can be placed by fax, email or telephone:

0121 243 3163

OmegaCubed.net is registered and assured with The SafeBuy Consumer Code of Practice to protect your purchase.

Part Code Description Narrow Angle Wide Angle
RM200-AI-10 Raymax 200, 10° - 20°, 850nm LED's + PSU 300m (985ft) 200m (656ft)
RM200-AI-30 Raymax 200, 30° - 60°, 850nm LED's + PSU 160m (525ft) 106m (346ft)
RM200-AI-50 Raymax 200, 50° - 180°, 850nm LED's + PSU 112m (367ft) 74m (243ft)
RM200-AI-120 Raymax 200, 180° - 180°+, 850nm LED's + PSU 64m (210ft) 42m (139ft)
RM200-AI-10-C Raymax 200, 10° - 20°, 950nm LED's + PSU Contact OmegaCubed
RM200-AI-30-C Raymax 200, 30° - 60°, 950nm LED's + PSU Contact OmegaCubed
RM200-AI-100-C Raymax 200, 50° - 180°, 950nm LED's + PSU Contact OmegaCubed
RM200-AI-120-C Raymax 200, 120° - 180°+, 950nm LED's + PSU Contact OmegaCubed
[nm = namometer wavelength]
