You are Here:- Home >> Products >> Network Cameras >> Axis Cameras >> Fixed Cameras >> Axis M1104
All Cameras >> Fixed >> Fixed Dome >> PTZ >> PTZ Dome >> Thermal >>

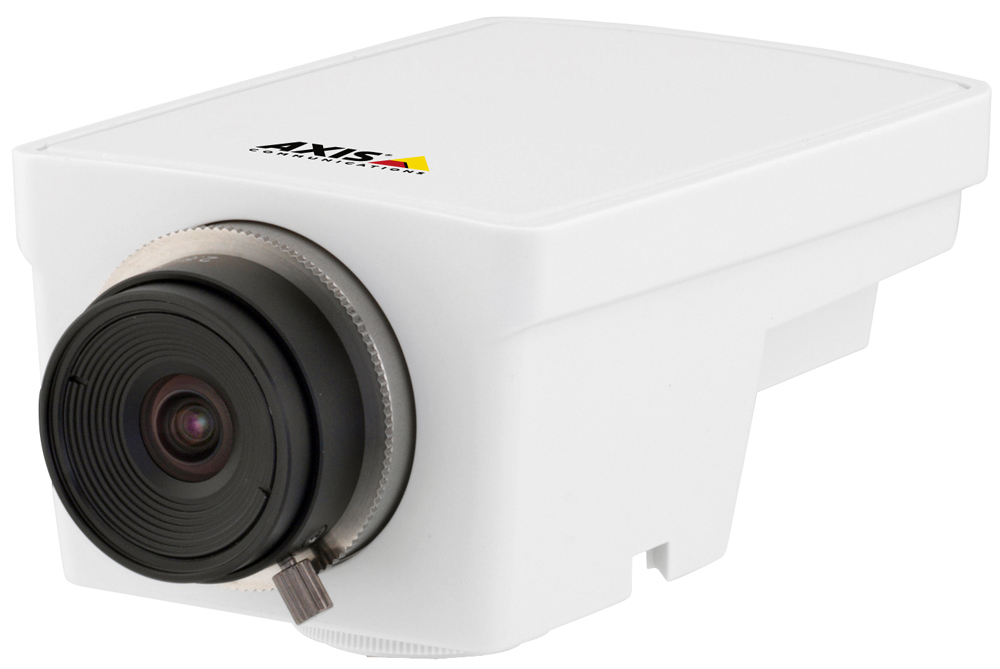

AXIS M1104 Fixed Network IP Camera
The Axis M1104 (part of the Axis M11 Series) offers a high quality, affordable video surveillance solution. Using progressive scan technology, the camera can provide images with resolutions up to HDTV 720p, 1 megapixel at full frame rate.

Multiple H.264 and Motion JPEG streams can be provided simultaneously, individually optimised for different quality needs and bandwidth constraints.

The Axis M1104 supports digital pan/tilt/zoom, pixel counting and Power over Ethernet.

The Axis M1104 supports Quality of Service (QoS) which helps to ensure the necessary bandwidth for streaming video and control commands over the network.

The Axis M1104 supports Internet Protocol version 6 (IPv6) in addition to version 4.		 Axis M1104 Network IP Camera
247 kb Image
The Axis M1104 Fixed Network IP Camera carries an Axis 1-year Warranty.
AXIS M1104 Fixed Network IP Camera
Features
  • Up to 25 frames per second (PAL) in all resolutions
  • Resolution: 1 megapixel HDTV 720p [160 x 90 to 1280 x 800]
  • Lens:
    2.8mm, F2.0, fixed iris, fixed focus 80° view, or
    6.0mm, F1.8, fixed iris, fixed focus 37° view
  • Image sensor: 1/4” progressive scan RGB CMOS
  • Illumination: 1–100,000 lux
  • Shutter time: 1/24500's to 1/6's
  • Video compression: H.264, Motion JPEG
  • Video Streaming: H.264/MPEG-4,multiple, individual streams at full frame rate and resolution
    controllable frame rate and bandwidth VBR/CBR H.264
  • Digital pan/tilt/zoom, preset positions, guard tour
  • Video motion detection, tamper alarm
  • Alarm triggers: Intelligent video
  • Alarm events: File upload via FTP, HTTP and email
    Notification via email, HTTP and TCP
  • Video buffer: 25 MB pre- and post alarm
  • Security: Password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
  • Supported Protocols: SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
  • Size: height 43mm (1.7"), width 61mm (2.4"), depth 94mm (3.7")
  • Weight: 170g (0.37 lbs)
  • Operating environment: 0°- 50° C (32°- 122° F)
  • Humidity: 20-80% (non-condensing)
  • Power:Power over Ethernet IEEE 802.3af Class 1
  • Accessories Included: stand, Installation Guide, CD with installation tools, recording software and User’s Manual, Windows decoder 1-user license

AXIS M1104 Fixed Network IP Camera
Accessories
  • Milestone Xprotect is based on four main offerings scaled in functionality and price which offer multi-hardware support and robust performance. Milestone XProtect can control up to 64 cameras per server, with multiple servers and multiple sites.
  • Axis Camera Station One is a (Free !) software solution for the simultaneous viewing and recording of high-quality H.264, MPEG-4 and Motion JPEG video from a single surveillance camera.
  • Axis Camera Station software offers Windows PC users all the necessary video recording and monitoring functions for security surveillance. The software supports up to 50 cameras/video servers per installation and an unlimited recording database (limited only by hardware!).
  • Axis Camera Management Axis Camera Management is a powerful and efficient installation and management tool for use with Axis video products.

Request Information:

Email E-mail

[Find out more...] Axis M11 Series Fixed Network IP Cameras "Technical Data Sheet", 501 kB pdf file.

[Find out more...] Axis M11 Series Fixed Network IP Cameras "User's Manual", 1.522 MB pdf file.

[Find out more...] Axis M11 Series Fixed Network IP Cameras "Installation Guide", 3.232 MB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

AXIS M1104 - Order Details

Axis M1104
Lens Part Number
2.8mm 0339-001 Buy Axis M1103
6mm 0367-001 Buy Axis M1103
