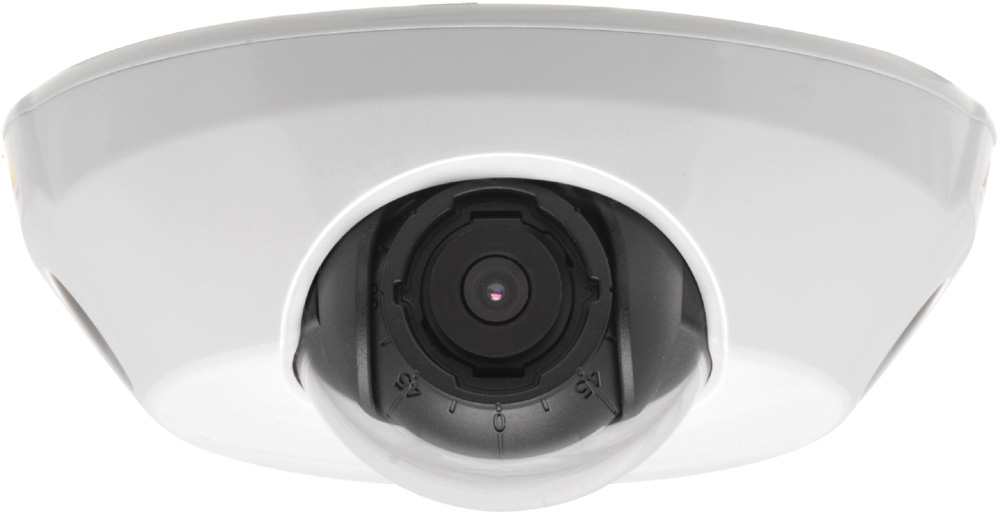

AXIS M3114-R Fixed Dome IP Camera
The Axis M3113-R is a member of the Axis M31-R series of high-performance Fixed Dome Network Cameras specially designed for video surveillance in buses, trains, subway cars and emergency vehicles.
The cameras are designed for quick and reliable installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor. The tool can also be used to exchange and focus the lens when a lens with a different angle of view is required. The cameras provide a pixel counter for verifying that the pixel resolution of an object meets specific requirements. Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.
Vibration resistance and tampering alarm
The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps and temperature fluctuations. The active tampering alarm can detect tampering attempts such as blocking or spray-painting.
Clear images
The Axis M3114-R has support for HDTV 720p streaming at full frame rate. The camera is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained. The use of progressive scan also produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements.
Standard and wide-angle models
The standard Axis M3114-R Network Camera with an 80° angle of view is available with rugged RJ-45 or M12 network connectors. The wide-angle Axis M3114-R M12 2 mm, with an M12 network connector and a 105° angle of view, can cover both the door and aisle of a train with only one camera. When using the supported Axis' , the camera provides deeper, vertical coverage of aisles..
The Axis M3113-R Fixed Dome Network IP Camera carries an .
Camera angle adjustment: Pan ± 30°, tilt 0-90°, rotation ± 180°
Video compression: H.264 (MPEG-4 Part 10/AVC), Motion JPEG
Resolutions: (all models); 1280x800 to 160x90
1440x900 (1.3 MP) scaled resolution available via VAPIX
Frame rate: 25 fps (PAL) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG. Controllable frame rate and bandwidth. VBR/CBR H.264
Pan/Tilt/Zoom: Digital PTZ, preset positions, guard tour
Image settings: Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, wide dynamic range - dynamic contrast, fine tuning of behavior at low light, mirroring of images Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Text and image overlay, privacy mask
Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
Intelligent video Video motion detection, active tampering alarm, Axis Camera Application Platform
Events: Intelligent video
Alarm actions: File upload via FTP, HTTP and email; notification via email, HTTP and TCP; video recording to edge storage; pre- and post-alarm
video buffering
Installation aids in software: pixel counter
Casing: IP66-, IP67- and NEMA 4X-rated, IK08 impact-resistant aluminum and polycarbonate casing; dehumidifying membrane;
captive screws; not designed for mounting outside a vehicle
Power: (IEEE 803af) enabled with power classification Class 1 max. 3.2 W
Connectors Axis M31-R: rugged, female RJ-45 10BASE-T/100BASE-TX
Axis M31-R M12: rugged, female, D-coded M12 connector with rotatable coupling nut
All connectors support Power over Ethernet
Edge storage: Support for recording to network share (Network Attached Storage or file server)
Operating conditions: -25 °C to 50 °C (-13 °F to 122 °F). Humidity 15 - 100% RH (condensing)
Weight 250 g (0.55 lb.)
Dimensions: 109 mm (4.3”)
AXIS M3114-R Fixed Dome Network Camera Included Accessories
Lens tool, top cover tool, drill hole template, mounting adapters
Installation Guide, CD with installation tools, recording software
and User’s Manual
Windows decoder 1-user license
AXIS M3114-R Fixed Dome IP Camera Optional Accessories
is based on four main offerings scaled in functionality and price which offer multi-hardware support and robust performance. Milestone XProtect can control up to 64 cameras per server, with multiple servers and multiple sites.
is a (Free !) software solution for the simultaneous viewing and recording of high-quality H.264, MPEG-4 and Motion JPEG video from a single surveillance camera.
software offers Windows PC users all the necessary video recording and monitoring functions for security surveillance. The software supports up to 50 cameras/video servers per installation and an unlimited recording database (limited only by hardware!).
Axis Camera Management is a powerful and efficient installation and management tool for use with Axis video products.
