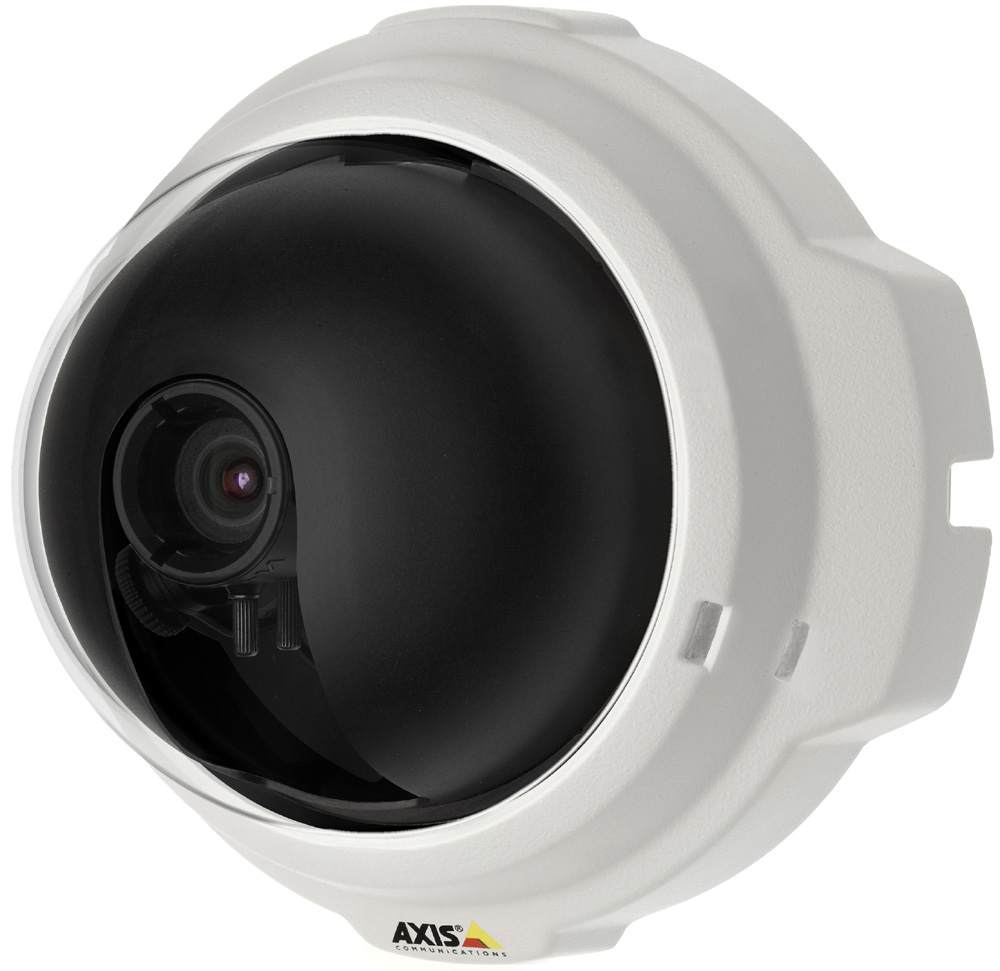

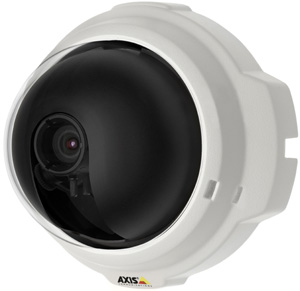

AXIS M3204-V Fixed Dome IP Camera
Vandal-resistant casing
The Axis M3204-V Fixed Dome Network Camera is ideal for demanding indoor surveillance of retail stores, warehouses and banks. The metal base and durable transparent cover provide excellent protection against vandalism

Excellent image detail
The Axis M3204-V offers excellent image quality with progressive scan in 1 megapixel resolution or HDTV 720p. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously either in full frame rate or individually optimized for different quality needs and bandwidth constraints.

Advanced event management
The Axis M3204-V includes intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray painting. The pixel counter helps the installer verify that the pixel resolution of an object or face fulfills regulatory or specific customer requirements, for example, for facial identification purposes 		Axis M3204-V Fixed Dome Network IP Camera
Click to Expand, 158 kb image

The use of progressive scan produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements. When using the supported Axis' Corridoor Format, the camera provides deeper, vertical coverage of aisles.
The Axis M3204 Fixed Dome Network IP Camera carries an Axis 1-year Warranty.
The Axis M3204-V is available for purchase under the Axis 30-day "Buy & Try" Scheme

AXIS M3204-V Fixed Network IP Camera
Features
  • Superior image quality using a progressive scan 1/4" CCD sensor, which enables moving images to be presented without distortion
  • Lens: Vari-focal, fixed iris
    Varifocal 2.8 - 10 mm, 80° - 22° horizontal angle of view, F1.7
  • Camera angle adjustment: pan 360º, tilt 170º, rotation 340º
  • Pan/Tilt/Zoom: Digital ptz, preset positions, guard tour
  • Supports Quality of Service (QoS) which helps to ensure the necessary bandwidth for streaming video and control commands over the network
  • Supports Internet Protocol version 6 (IPv6) in addition to version 4.
  • Power Over Ethernet (IEEE 802.3af) enabled
  • Resolutions: 1280x800 to 160x90*
    *1440x900 (1.3 MP) scaled resolution available via VAPIX
  • Up to 25 frames per second (PAL) in all resolutions
  • Minimum Illumination: 0.9 - 100000 lux, F1.7
  • Shutter Time: 1/24500 s to 1/6 s
  • Multiple H.264 and Motion JPEG video streams; simultaneously, at full frame rate, or individually optimised for image quality and bandwidth contraints
  • Intelligent video: Video motion detection, active tampering alarm, audio detection
  • Alarm triggers: Intelligent video, external input
  • Alarm events: File upload via FTP, HTTP and email
    Notification via email, HTTP and TCP
    External output activation
  • Privacy masking, text, date and time overlay
  • Powerful Application Programming Interface (API) for software integration
  • Casing: Polycarbonate transparent cover
    Aluminum inner camera module with encapsulated electronics
    Tamper-resistant plastic casing
  • Operating environment:
    0º — 50 ºC (32º — 122 ºF)
    Humidity 20 — 80% RH (non condensing)
  • Power: Power over Ethernet (IEEE 802.3af) Class 2 (maximum 4.2W)
  • Dimensions: (H x D) 94 mm x 144 mm (3.7'' x 5.7'')
  • Weight: 580g (1.3 lb)

AXIS M3204-V Fixed Network IP Camera
Included Accessories
  • Installation Guide, CD with installation tools, recording software and User’s Manual, key for tamper-proof screws, Windows decoder 1-user license

AXIS M3204-V Fixed Network IP Camera
Optional Accessories
  • Milestone Xprotect is based on four main offerings scaled in functionality and price which offer multi-hardware support and robust performance. Milestone XProtect can control up to 64 cameras per server, with multiple servers and multiple sites.
  • Axis Camera Station software offers Windows PC users all the necessary video recording and monitoring functions for security surveillance. The software supports up to 50 cameras/video servers per installation and an unlimited recording database (limited only by hardware!).
  • Axis Camera Management Axis Camera Management is a powerful and efficient installation and management tool for use with Axis video products.

Request Information:

Email E-mail

[Find out more...] Axis M32 Series "Technical Data Sheet", 886 kB pdf file.

[Find out more...] Axis M32 Series "User's Manual", 1.361 MB pdf file.

[Find out more...] Axis M32 Series "Installation Guide", 1.92 MB pdf file.

[Find out more...] Axis "IP Surveillance Design Guide", 13 MB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

AXIS M3204-V - Order Details

Axis M3204-V Standard Model
Region Part Number
All 0346-001 Buy Axis M3204-V
