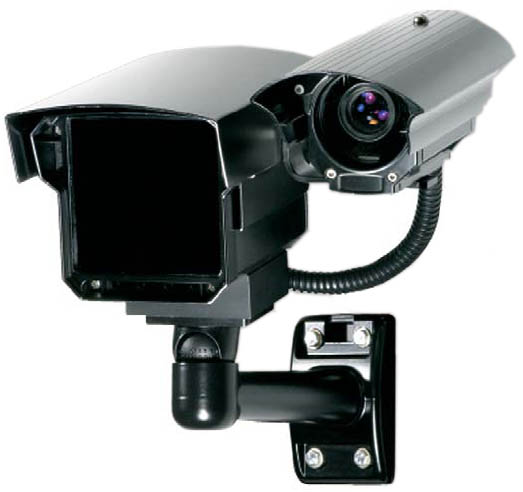

REG-D1, featuring Ambient Rejection Technology for reliable license plate capture at ranges up to 30 m and vehicle speeds of up to 100 mph
You are Here:- Home >> Products >> Illuminators >> Bosch REG >> REG-D1
Sentry Access Control >> REG-X1 >>
REG-D1 >> REG-L1 >> REG-Z1 >>
-D1 License Plate Capture
The REG-D1 series delivers advanced license plate capture performance and features a high resolution color overview camera for surrounding area surveillance to identify vehicle model and colour.

REG-D1 integrates advances in optics, electronics, infrared illumination and ambient rejection technology to overcome all the challenges typically associated with license plate capture to deliver consistent, reliable images in the most challenging of conditions.

With an operational range of up to 30 m (100 ft) or 25 m (80 ft) depending on number plate size, the REG-D1 delivers high contrast license plate images across the complete spectrum of ambient lighting from total darkness to direct glare from sunlight or vehicle headlights regardless of the prevailing lighting conditions. The camera can capture clear plate images from vehicles traveling at speeds of up to 160 km/h (100 mph), making REG-D1 suitable for motorways and highways applications.

The camera housing is weather sealed and IP66 / NEMA 4 rated for field-proven performance in the most extreme surveillance conditions. LED infrared illumination ensures consistent, reliable capture day and night. REG-D1 is designed to work with NVRs and DVRs, and is specifically engineered for easy integration with third party ANPR software.

-D1 License Plate Capture - Features
  • Number Plate capture up to 30 metres (100 ft) under infrared illumination
  • High-speed capture to 160 km/h (100 mph)
  • Ambient rejection technology eliminates problems caused by headlight glare
  • Colour overview camera
  • Energy efficient operation, 12V to 24V AC/DC
  • Advanced Ambient Rejection Technology
  • Compact and installation friendly design

REG is calibrated to ensure maximum accuracy. Please select the range that is appropriate taking into consideration the maximum point at which capture is required.

[Find out more...] REG-D1 "Technical Specifications".

[Find out more...] REG-D1 "Technical Data Sheet", 886kB pdf file.

To view the .pdf file, you will need the free Adobe® Acrobat® Reader or plug-in. If you do not have Acrobat Reader, please select the "Get Acrobat Reader" icon for further instructions.

Request Information:

Email E-mail

-D1 License Plate Capture - Order Details does not sell on-line. Orders (See Order Options for Details) can be placed by fax, email or telephone:

0121 243 3163 is registered and assured with The SafeBuy Consumer Code of Practice to protect your purchase.

REG-D1 License Plate Capture
Model Description Range * Optimal Distance
REG-D1-812XC-01 License plate reader with 850 nm LED's,
12 mm lens, SX8 camera, CCIR, black
3 to 6 m (10 to 20 ft) 5 m (16 ft)
REG-D1-816XC-01 License plate reader with 850 nm LED's,
16 mm lens, SX8 camera, CCIR, black
5 to 8 m (16 to 26 ft) 7 m (23 ft)
REG-D1-825XC-01 License plate reader with LED 850 nm,
25 mm lens, SX8 camera, CCIR, black
7 to 12 m (23 to 40 ft) 10 m (33 ft)
REG-D1-835XC-01 License plate reader with LED 850 nm,
35 mm lens, SX8 camera, CCIR, black
11 to 18 m (34 to 60 ft) 15 m (50 ft)
REG-D1-850XC-01 License plate reader with LED 850 nm,
50 mm lens SX8 camera, CCIR, black
17 to 25 m (56 to 82 ft) 22 m (72 ft)
REG-D1-875XC-01 License plate reader with LED 850 nm,
75 mm lens, SX8 camera, CCIR, black
22 to 30 m (72 to 100 ft) 28 m (92 ft)
[nm = namometer wavelength]
Note: * Range for 520 x 111 mm (20.5 x 4.4 in) license plates [Most European Countries]
REG-D1 Accessories
Model Description
EXMB.015B Pole Mount Adapter Bracket, Black
EXMB.017B Wall Mount Adapter Bracket, Black
EXMB.028B Cable Managed Wall Bracket Bracket, Black
EXMB.029B Ceiling Mount Bracket, Black
EXMB.061 Stainless Pole Top Bracket
UPA-2450-50 Power Supply 220VAC, 50Hz, 24VAC, 50VA Out
